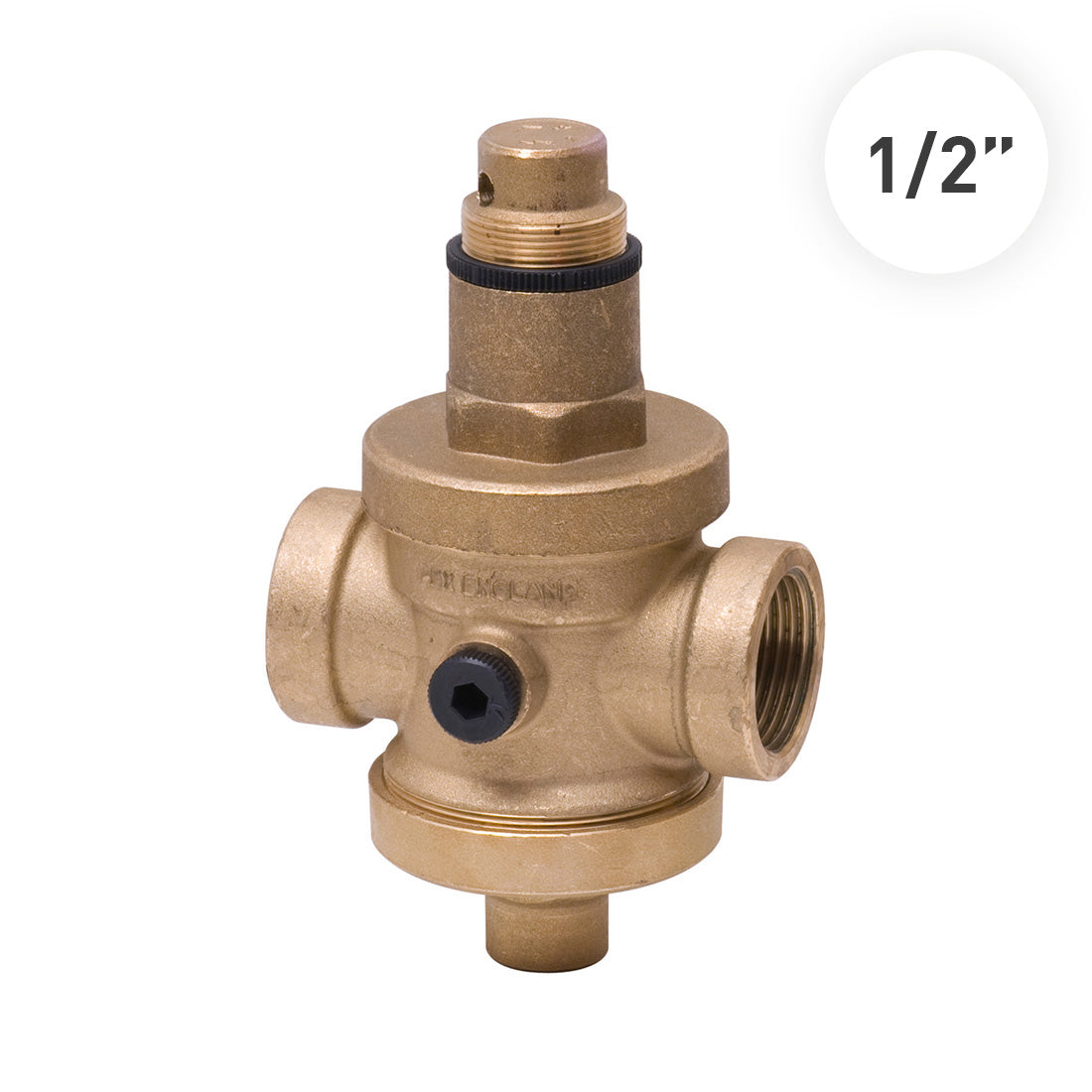

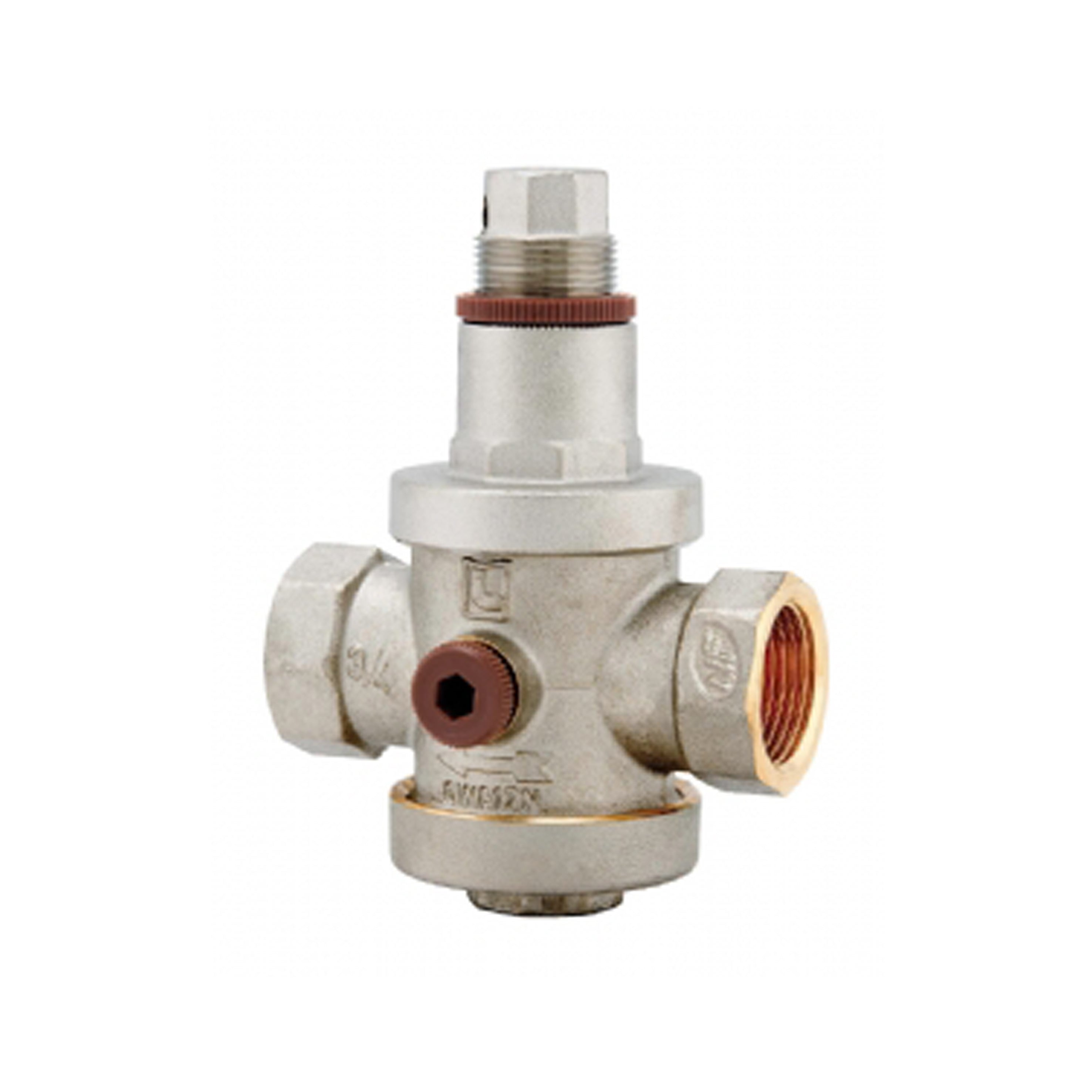

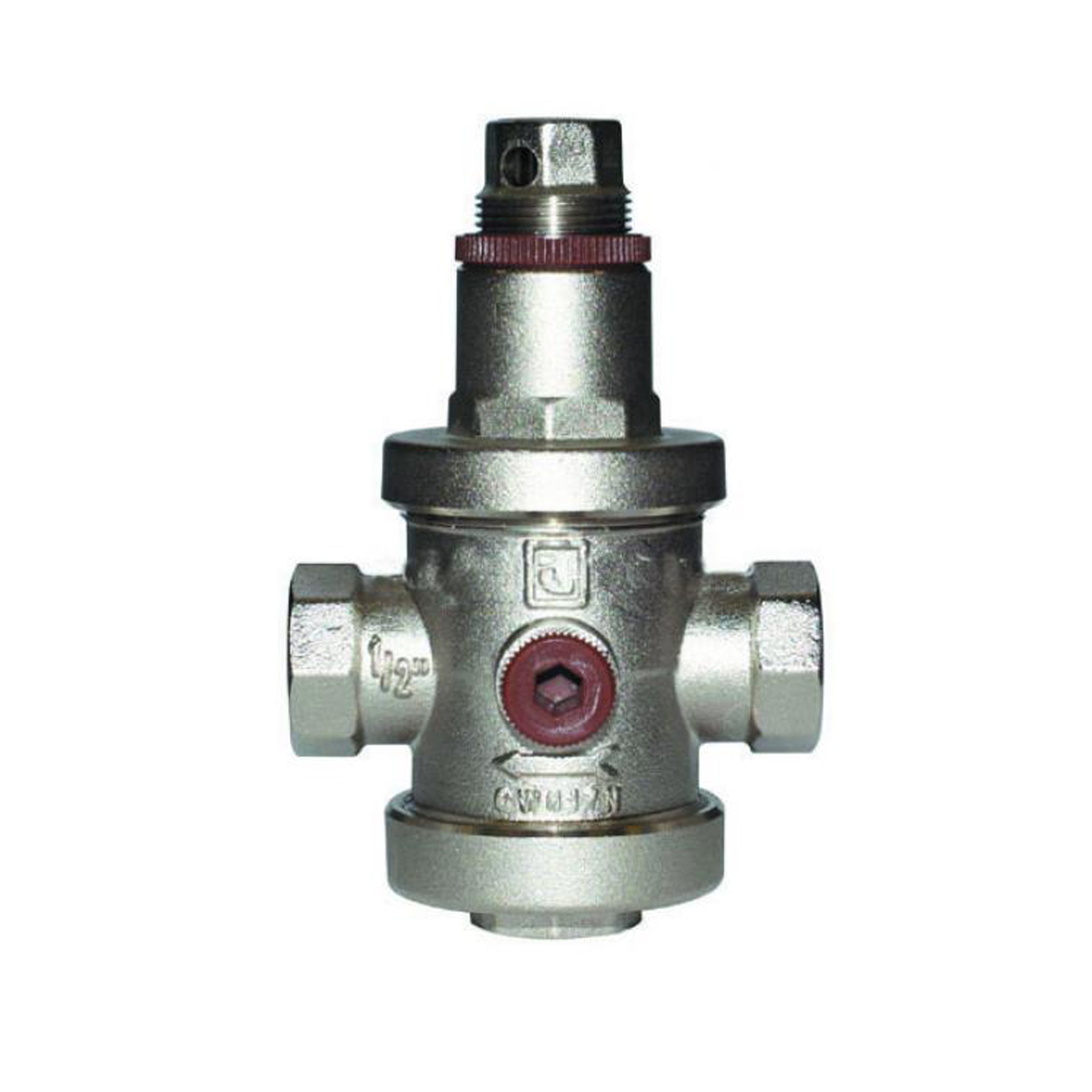

pressure reducing valve

• used to: change the amount of pressure inflowing water
• material: body in nickel-plated brass.
• inlet thread type: female threaded insert
• application: cold and hot water 0°C, 80°C.
• certification: threads ISO228 (equivalent to DIN EN ISO 228 and BS EN ISO 228).
• pressure rating: 25bar.

• Outlet pressure can be adjusted: 1/2” – 3/4” – 1” between 1 and 5,5 bar; 1”1/4 through 4” between 1 and 6 bar.
• Outlet pressure gauge connection: 1/4” on both sides.
